Product details

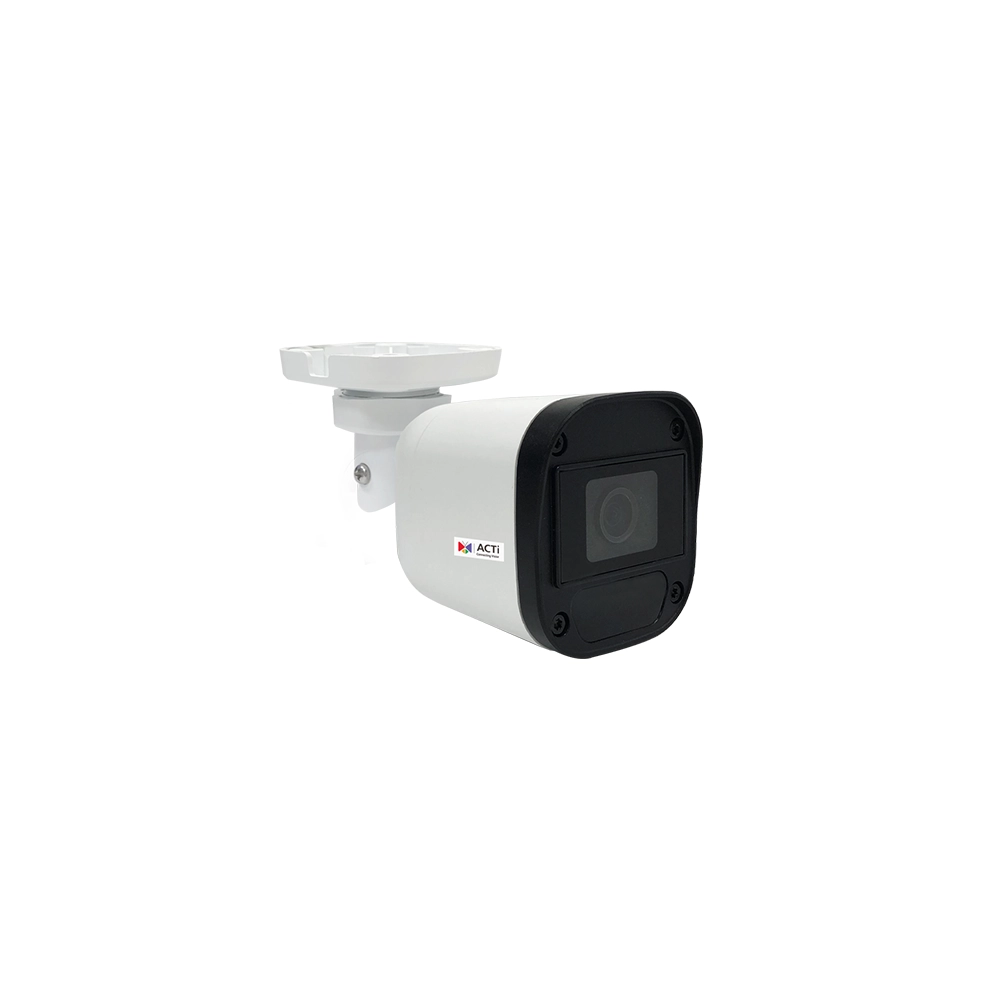

ACTi Y35, 2MP f2.8mm Analog Bullet with IR LED 30m, WDR 130dB
- 2 Megapixel, f2.8mm, Analog Bullet
- IR LED 30m, Extreme WDR (130 dB)
- Weatherproof (IP67)
| Specification | |
| Product Type | Analog Bullet |
| Application Environment | Outdoor |
| Maximum Resolution | 2MP |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 “ |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.02 lux at F2.0 (AGC on); B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | IR LED |
| IR Working Distance | 30m |
| Electronic Shutter | 1/30-1/50000 second (NTSC), 1/25-1/50000 second (PAL) |
| Lens | |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 90.5° |
| Vertical Viewing Angle | 49.6° |
| Video | |
| Maximum Frame Rate vs. Resolution | (TVI/AHD/CVI) |
| 30 fps at 1920 x 1080 | |
| (CVBS) | |
| NTSC, PAL | |
| Digital Noise Reduction | 2D + 3D DNR |
| Wide Dynamic Range | Extreme WDR (130 dB) |
| Image Orientation | Flip |
| Image Enhancement | White Balance |
| Network | |
| Ethernet Port | No |
| Interface | |
| Analog Video Output | 1 x BNC connector, TVI/AHD/CVI/CVBS |
| General | |
| Power Source | DC 12V (adapter not included), plug size 2.1×5.5mm |
| Power Consumption | 2 W (DC) |
| Dimensions | (L x W x H): 142mm x 63mm x 65mm (5.59″ x 2.48″ x 2.56″) |
| Environmental Casing | Weatherproof (IP67) |
| Mount Type | Pole Mount, Corner Mount |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | ≤90% RH, non-condensing |
| Surge Protection | 4KV |
| Approvals | CE Class B, FCC Class B, IP67 |
| Material | Plastic |
| Real-time Clock (RTC) | No |
| Warranty | 2 Year(s) |
