Product details

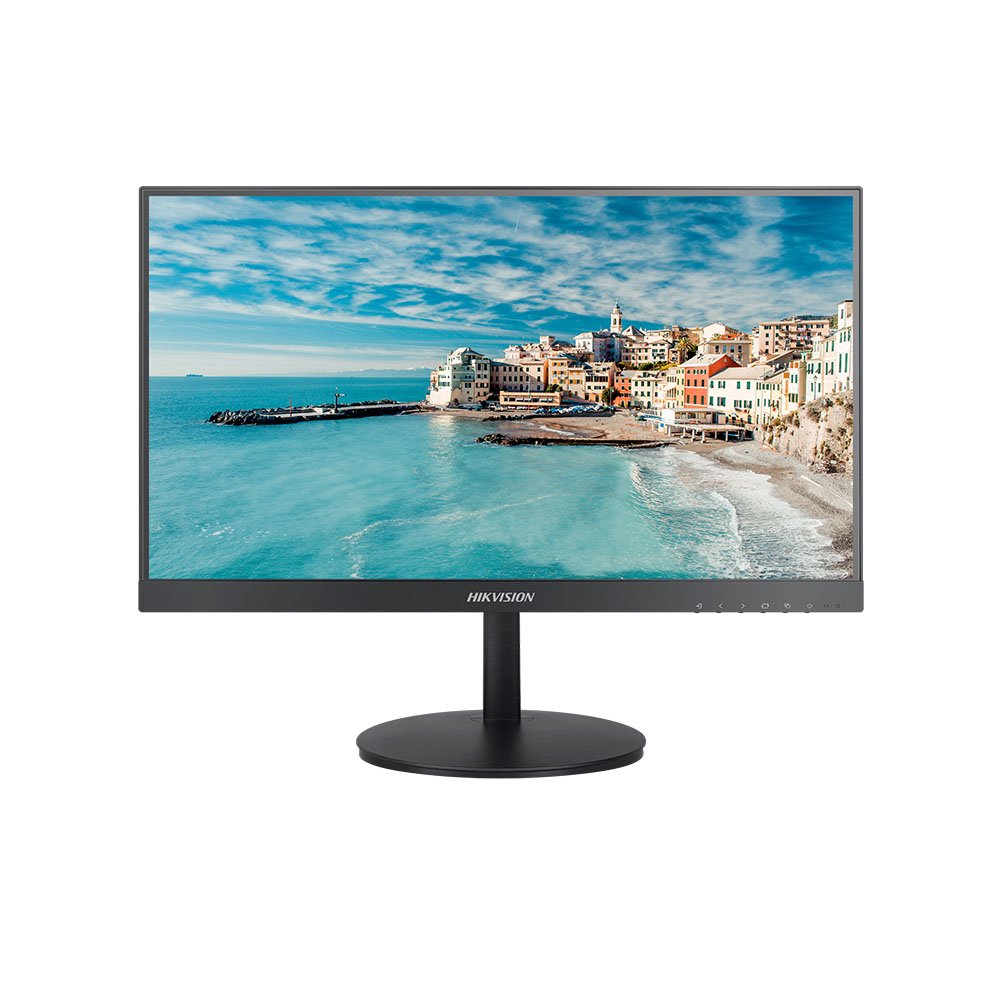

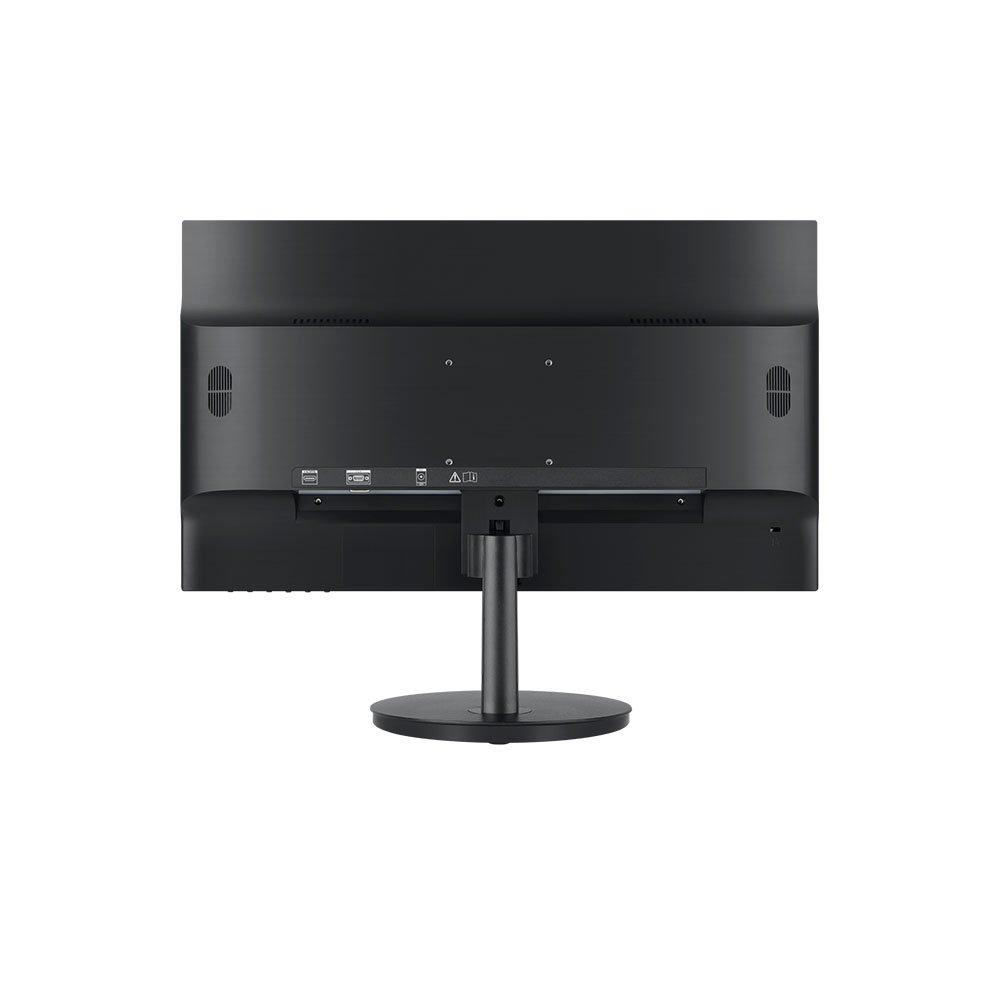

DS-D5022FN-C, 21.5 inch FHD Borderless Monitor.
- Ultra-thin device body with ultra-thin border for 3 sides.
- 2 channels of 8 bit/10 bit LVDS HD (1920 × 1080) display.
- 178° ultra-wide view screen.
- 3D noise reduction.
- Low blue light design for eye care.
- Dual interface of HDMI and VGA.
- Support VESA wall mount.
Available models:
DS-D5022FN-C(American Standard)
| Category | Specification | Details |
| Display | Screen Size | 21.5 inch |
| Active Display Area | 478.656 (H) × 260.28 (V) mm | |
| Resolution | 1920 × 1080 | |
| Backlight | E-LED | |
| Pixel Pitch | 0.0831 (H) × 0.241 (V) mm | |
| Brightness | 250 cd/m² | |
| Viewing Angle | 178° (H) / 178° (V) | |
| Color Depth | 8 bit | |
| Contrast Ratio | 3000:01:00 | |
| Response Time | 6.5 ms | |
| Refresh Rate | 60 Hz | |
| Haze | 25% | |
| Reliability | 7 × 24 h | |
| Color Gamut | 72% NTSC | |
| Interface | Video & Audio Input | HDMI 1.4 × 1, VGA × 1 |
| Power | Power Supply | 100–240 VAC, 50/60 Hz |
| Power Consumption | ≤ 22 W | |
| Standby Consumption | ≤ 0.5 W | |
| Working Environment | Working Temperature | 0°C to 40°C (32°F to 104°F) |
| Working Humidity | 20% to 90% RH (without condensation) | |
| Storage Temperature | –20°C to 60°C (–4°F to 140°F) | |
| Storage Humidity | 10% to 90% RH (without condensation) | |
| General | Casing Material | Plastic |
| VESA | 75 × 75 mm, 4-M6 × 6 screw holes | |
| Bezel Width | Top: 1.88 mm; Bottom: 19 mm; Left: 1.88 mm; Right: 1.88 mm | |
| Product Dimensions with Base (W × H × D) | 492.356 × 390.11 × 200.20 mm (19.38 × 15.36 × 7.88 in) | |
| Product Dimensions without Base (W × H × D) | 492.356 × 289.680 × 43.88 mm (19.38 × 11.40 × 1.73 in) | |
| Package Dimensions (W × H × D) | 647 × 111 × 406 mm (25.49 × 4.37 × 15.99 in) | |
| Net Weight | 2.6 ± 0.5 kg (5.7 ± 1.1 lb) | |
| Gross Weight | 4.0 ± 0.5 kg (8.8 ± 1.1 lb) | |
| Packing List | Monitor | ×1 |
| AC Power Cable | ×1 | |
| Base Bracket | ×1 | |
| User Manual | ×1 | |
| Quick Start Guide | ×1 | |
| HDMI Cable | ×1 | |
| Remarks | Base | Included by default |
| Specification Notice | Product appearance and specifications may vary from the actual device. Please consult local sales staff for further information. |
