Product details

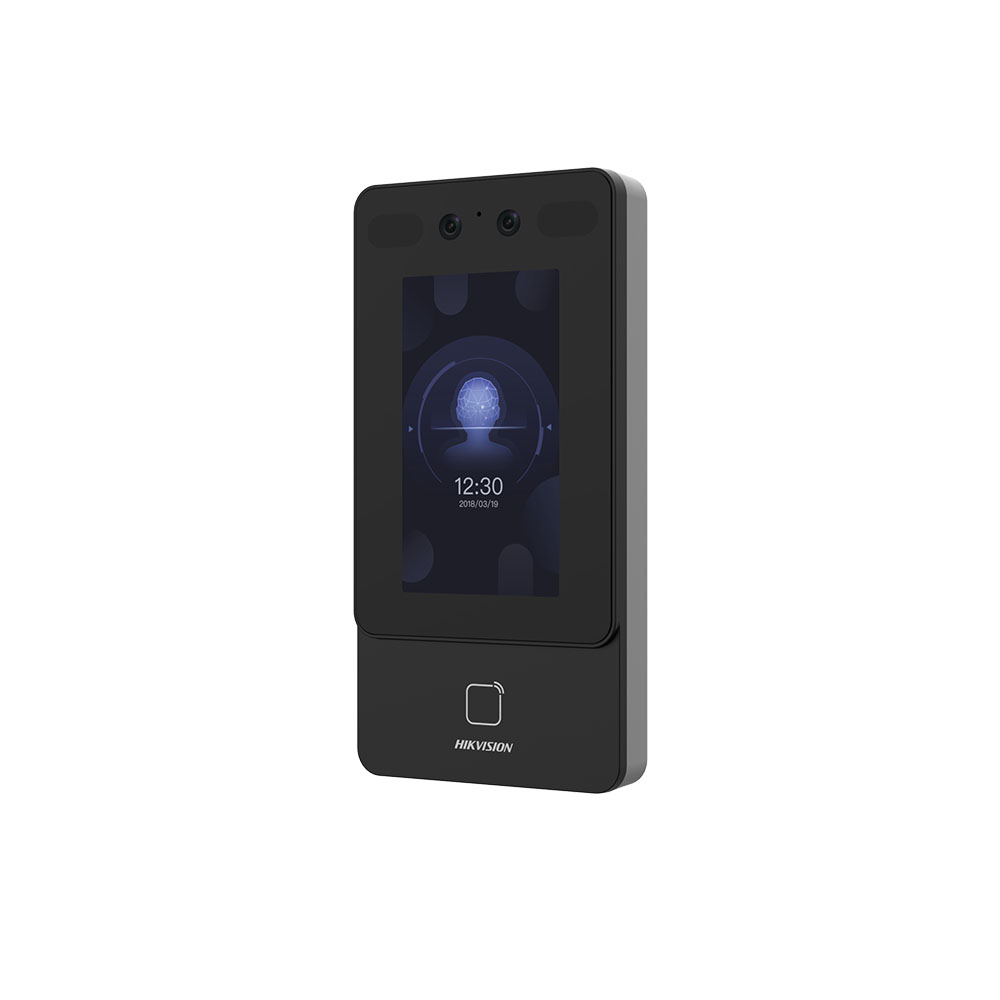

DS-K1T342DWX, Value Series Face Access Terminal
- Max.1500 faces capacity, and Max.3000 cards
- Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens, Built-in M1/Felica/DESfire card reading module
- Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
- Supports ISAPI, ISUP5.0
- Configuration via the web client
- Face Recognition Distance: 0.3 m to 1.5 m
- Duration ＜ 0.2 s/User
- Accuracy rate ≥ 99%
- Supports mask recognition
| Specification | |
| Display | |
| Screen Size | 4.3 inch |
| Operation Method | Capacitive touch screen |
| Type | LCD |
| Video | |
| Lens | 2 |
| Resolution | 2 MP |
| Audio | |
| Audio Quality | Noise suppression and echo cancellation |
| Network | |
| Wired Network | Supported |
| Wi-Fi | Supported, 2.4 G, 802.11b/g/n |
| Interfaces | |
| Network Interface | 1 RJ-45, 10/100 M self-adaptive |
| Lock Control | 1 |
| Exit Button | 1 |
| Door Contact Input | 1 |
| TAMPER | 1 |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION) |
| Wiegand | 1 Wiegand (Hik 26bit, Hik 34bit) |
| USB | 1 |
| Authentication | |
| Card Type | M1 card; DESfire card; Felica card |
| Card Reading Frequency | 13.56 MHz |
| General | |
| Power Supply | 12 VDC to 24 VDC, 1 A |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working Humidity | 0 to 90% (No condensing) |
| Dimensions | 91.3 mm × 181.3 mm × 24.5 mm (3.59″ × 7.14″ × 0.96″) |
| Installation | Wall mounting |
| Gross Weight | 0.93 kg (2.05 lb) |
| Net Weight | 0.36 kg (0.79 lb) |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese |
| Platform | Hik-ProConnect and HikCentral Professional |
| Function | |
| Face Anti-Spoofing | Supported |
