Product details

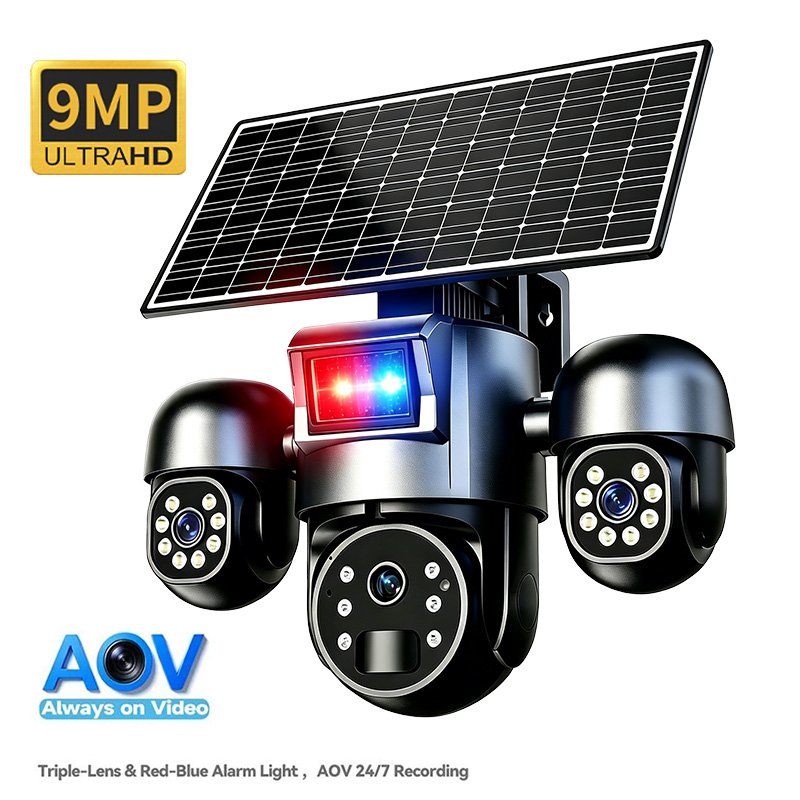

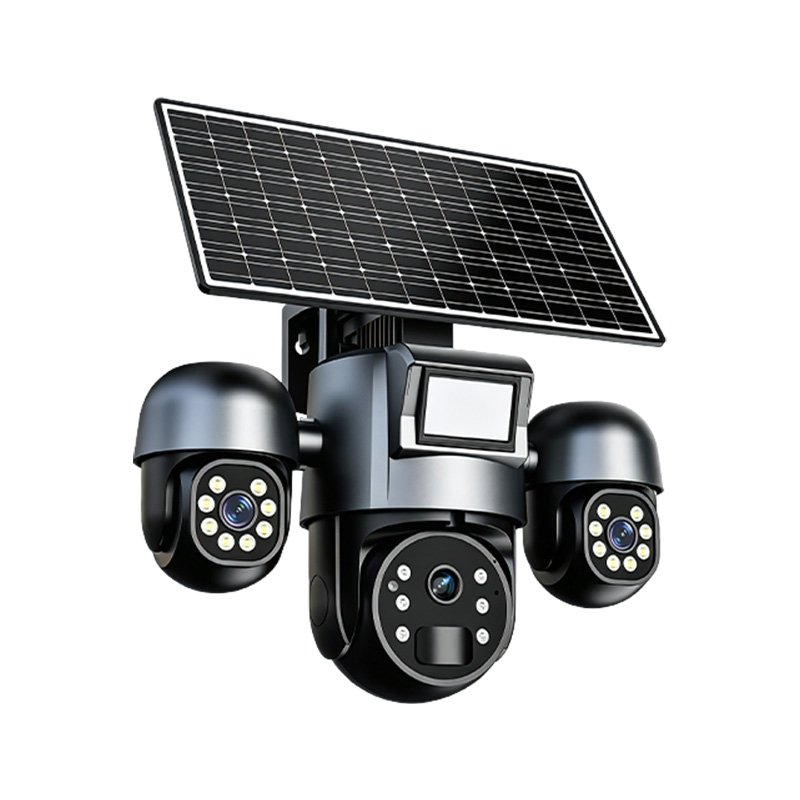

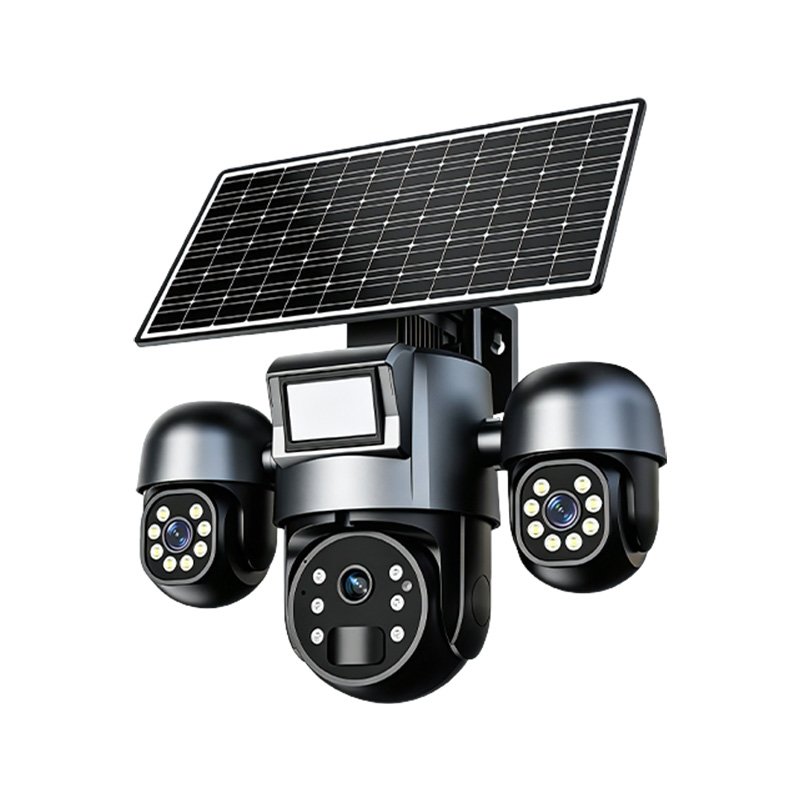

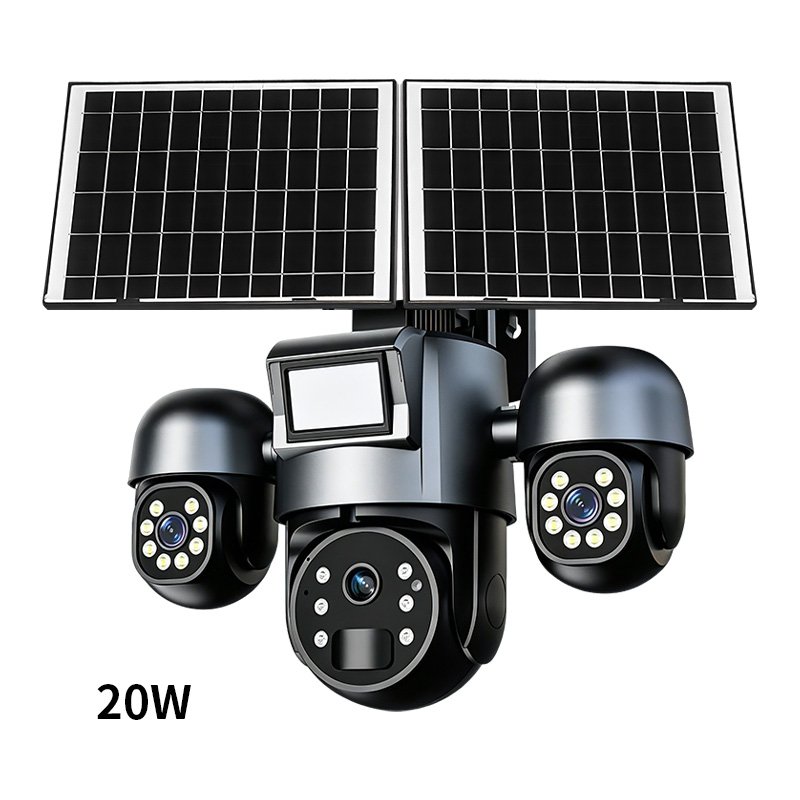

QD15-AOV Solar-powered Three-lens AOV Camera
| Model number | QD15-AOV |
| Version | 4G |
| APP | UBoxPro |
| Pixel | 9MP |
| Main control chip | Junzheng Ingenic T32VN |
| System | Linux/RTOS |
| Image sensor | Three CMOS sensors, 1/2.9-inch size |
| Video compression standard | H.264/H.265 |
| Fill light | 850 Infrared/White Light |
| Super Night Vision | The AOV snapshot and alarm/wake-up videos are all illuminated by white light. The AOV night vision snapshot is also illuminated by white light, with the light flashing |
| Black and white night vision | The AOV’s snapshot and alarm/wake-up videos are all captured with infrared illumination. The AOV’s night vision captures snapshots with infrared flashes |
| AOV Frame rate | 1，1/2，1/3，1/5，1/10， 1/20，1/30，1/60fps |
| AOV Capture time | 100ms Left and right |
| AOV Average current（1/1FPS） | 30ma Left and right（TBD） |
| AOV Average current（1/3FPS） | 20ma Left and right(TBD) |
| PIR Specification | Support single probe and single lens |
| PIR detection range | 10M |
| False alarm filtering | Support for mobile motion detection to filter out false alarms |
| Distribution network mode | Support Bluetooth addition, QR code scanning addition, and sound wave networking |
| Regular video recording | Normal frame rate recording |
| Time-lapse video recording | Low frame rate video recording (frame rate can be set) |
| Built-in battery | Section 8: 18650 battery with a total capacity of 16000 mAH |
| Solar panel | 10W |
| Power management | By default, if the AOV level is below 20%, it will enter a low-power mode. The AOV will stop, and the PIR and APP can remotely wake it up |
| Color box size | 32*26.3*22.5CM |
| Weight of the color box | 2.45KG |
| Outer box dimensions | 64.5*54*46.5CM（8PCS） |
| Outer box weight | 20KG |
