DS-2CE16D9T-AIRAZH Overview

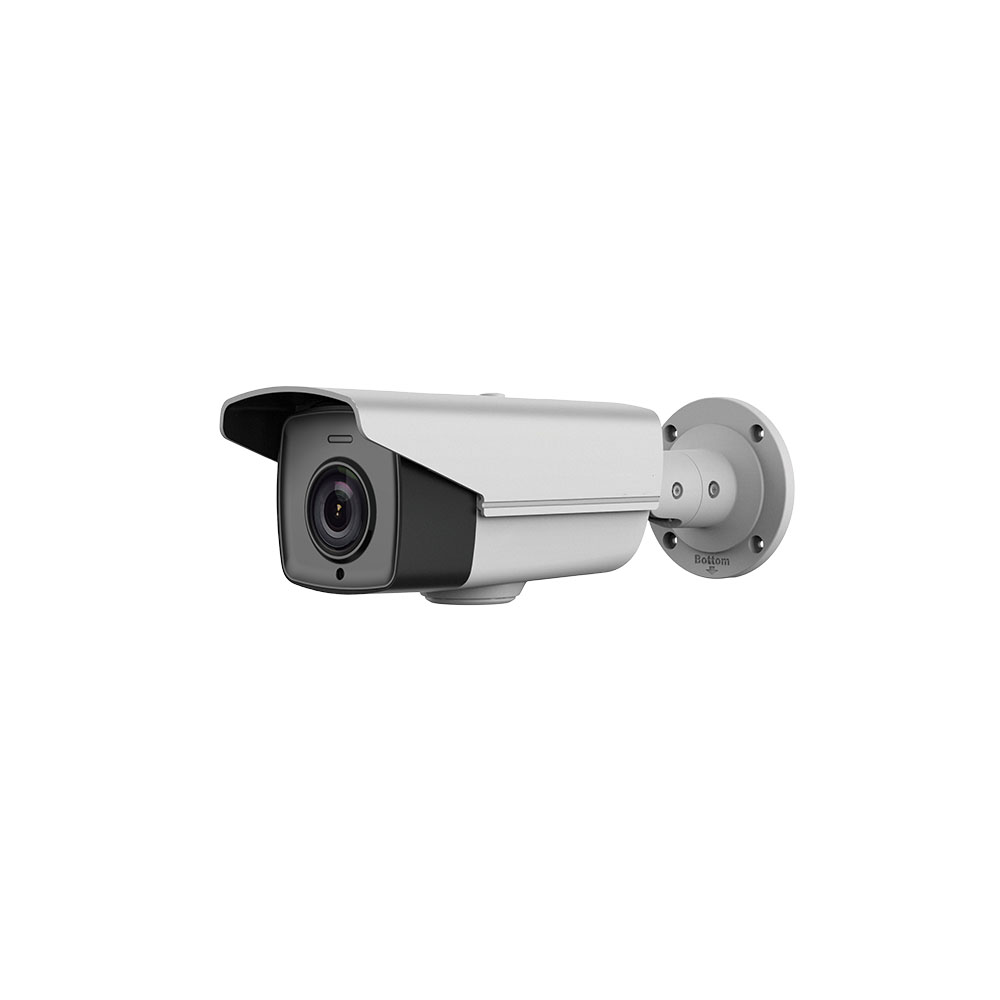

2 MP Motorized Varifocal Bullet Camera
- 2 MP high performance bullet camera
- Strong night performance, capturing images in ultra-low light down to 0.003 lux
- Clear imaging even against strong back lighting due to 120 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 5 mm to 50 mm motorized varifocal lens focuses automatically when zooming in or out
- Up to 120 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Dual outputs (HDTVI and CVBS signals output simultaneously)
- Transmits both HD video and power over the same coaxial cable
- Heater is available with 24 VAC
Available models:
DS-2CE16D9T-AIRAZH(5-50mm)
| DS-2CE16D9T-AIRAZH Specification | ||
| Image Sensor | Image Sensor Type | 2MP CMOS Image Sensor |
| Max. Resolution | 1944(H) × 1092(V) | |
| Min. Illumination | 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time | 1/25(1/30)s to 1/50,000s | |
| Day & Night Function | ICR (Infrared Cut Filter) | |
| Angle Adjustment | Pan: 0° – 360°; Tilt: 0° – 90°; Rotate: 0° – 360° | |
| Signal System | PAL / NTSC | |
| Application Scope | Indoor / Outdoor / Indoor1 / LOW-LIGHT | |
| Lens | Lens Angle of View | 59.8° – 6.2° |
| Image | Image Settings | HSBLC, Digital Noise Reduction, Digital Zoom (62x), Slow Shutter, Mirror, Defog, Defect Pixel Correction, SMART D-ZOOM, LSC (Lens Shading Correction) |
| Frame Rate | 1080P @ 25/30fps | |
| Day/Night Mode | Color / BW (Black and White) / EXT | |
| Wide Dynamic Range (WDR) | 120dB | |
| SNR (Signal-to-Noise Ratio) | > 62dB | |
| Image Enhancement | BLC (Backlight Compensation) | |
| Privacy Mask | On/Off, maximum 8 zones | |
| White Balance | ATW (Auto Tracking White Balance) / AWC-SET / Manual | |
| AGC (Automatic Gain Control) | Support | |
| Interface | Video Output | TVI & CVBS |
| Event | Motion Detection | On/Off, maximum 4 zones |
| General | Dimension | 313.5 × 100.8 × 107.3 mm |
| Weight | 1650g | |
| Operating Condition | Temperature: -40 °C – 60 °C (-40 °F – 140 °F); Humidity: 90% or less (non-condensing) | |
| Communication | Up the Coax; Protocol: Pelco-C (CVBS output), HIKVISION-C (TVI output) | |
| Supported Language | Chinese / English | |
| Power Supply | AC24V ± 15% / DC12V ± 15%; Heater available with 24VAC only | |
| Power Consumption | Max. 20W | |
| IR Range | Up to 120m | |
| Approval | Protection Grade | IP67 |
