Product details

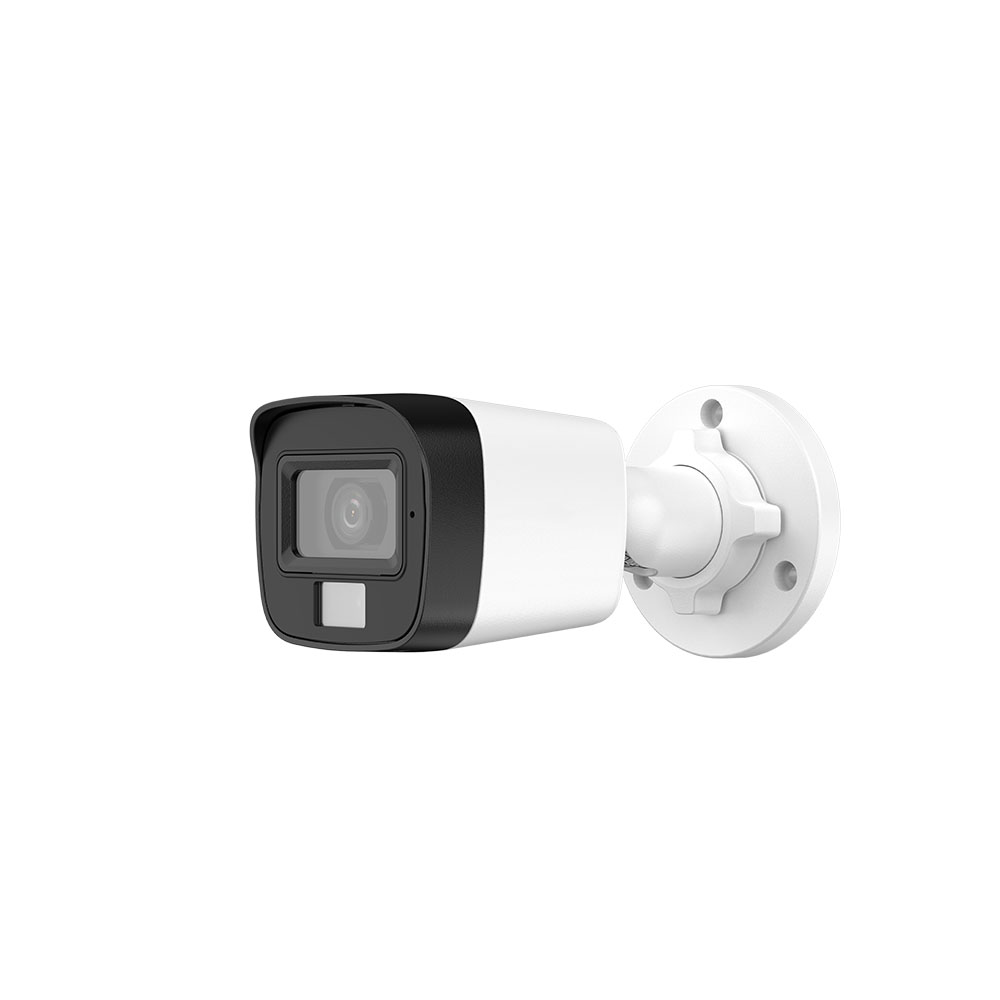

DS-2CE16G0T-LFS Overview
2K Smart Hybrid Light Audio Fixed Mini Bullet Camera
- High quality imaging with 2K, 2304 × 1296 resolution
- Smart-Hybrid Light,optimize your security with flexible lighting options
- Up to 30 m IR distance for bright night imaging
- Up to 20 m white light distance for bright night imaging
- High quality audio with audio over coaxial cable, built-in mic
- One port for four switchable signals (TVI/AHD/CVI/CVBS）
- Water and dust resistant (IP67)
Available models:
DS-2CE16G0T-LFS(2.8mm)
DS-2CE16G0T-LFS(3.6mm)
| DS-2CE16G0T-LFS Specification | ||
| Core Sensor | Image Sensor | 2K CMOS |
| Max. Resolution | 2304 (H) × 1296 (V) | |
| Min. Illumination | 0.01 Lux @ (F1.6, AGC ON); 0 Lux with IR | |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Day & Night Mode | ICR | |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 90°; Rotation: 0° to 360° | |
| Signal System | PAL/NTSC | |
| Lens | Lens Type | 2.8 mm fixed focal lens; 3.6 mm fixed focal lens |
| Focal Length & FOV | 2.8 mm: Horizontal FOV 105°, Vertical FOV 60°, Diagonal FOV 129° 3.6 mm: Horizontal FOV 89°, Vertical FOV 47°, Diagonal FOV 107° | |
| Lens Mount | M12 | |
| Audio (Microphone) | Microphone – Pickup Distance | In a radius of up to 5 m |
| Microphone – Amount | 1 | |
| Illuminator | Supplement Light Type | Smart, IR, White Light |
| Supplement Light Range | IR: Up to 30 m; White Light: Up to 20 m | |
| Image Functions | Image Settings | Brightness, Sharpness, Smart IR |
| Frame Rate | TVI: 2K @20 fps, 1080P @25 fps/30 fps AHD: 1080P @25 fps/30 fps CVI: 1080P @25 fps/30 fps CVBS: PAL/NTSC | |
| Day/Night Mode Selection | Auto/Color | |
| Wide Dynamic Range (WDR) | Digital WDR | |
| Image Enhancement | DWDR/BLC/HLC/Global | |
| White Balance | Auto/Manual | |
| AGC | Yes | |
| Interface | Video Output | Switchable TVI/AHD/CVI/CVBS |
| General | Power Supply | 12 VDC ± 25%, max. 4 W; *One power adapter per camera is recommended |
| Material | Metal | |
| Dimension | 138.8 mm × 60.9 mm × 57.9 mm (5.47″ × 2.4″ × 2.3″) | |
| Weight | Approx. 265 g (0.59 lb.) | |
| Operating Condition | -40 °C to 60 °C (-40 °F to 140 °F); Humidity ≤90% (non-condensing) | |
| Communication Protocol | HIKVISION-C | |
| Supported Language | English | |
| Protection Rating | IP67 | |
